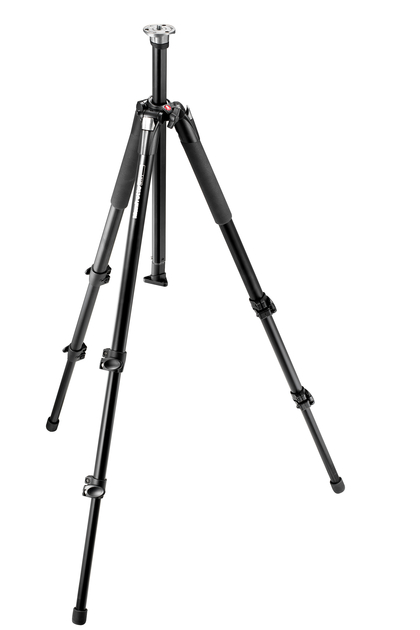

The Manfrotto 055XB Tripod Legs builds on the success of the 3011/3021 series, but has been redesigned to offer even better ergonomics of the leg-angle release mechanism, and improved quick action leg locks. While it can reach a maximum working height of 70" (178cm), it can also be used as low as 2.8" (7cm) by using the low angle adapter built in to the center column.
The 055XB provides speedy set-up coupled with added security with quick action, lever-type leg locks, low angle adapter and leg warmers. It is ideal for use with 35mm and light medium format photographic cameras, and digital or conventional type video camcorders.
- • 3-faceted center column which totally eliminates column rotation

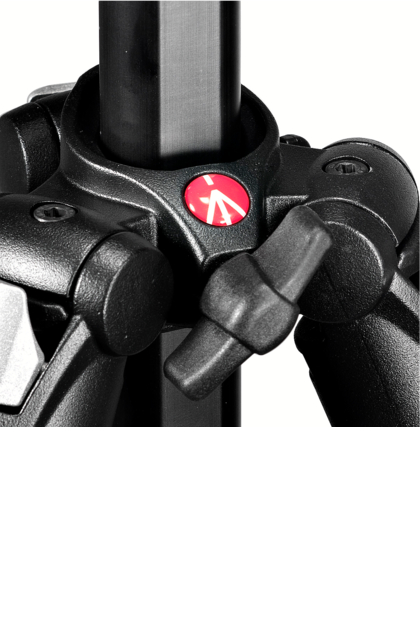

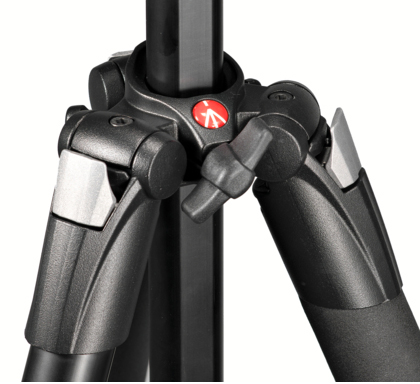

- • Redesigned more ergonomic flip locks, with only 45° of movement
- • Leg warmers on 2 legs ease handling in extreme weather conditions, and help to protect the legs
- • Built-in low angle adapter in the center column for ground level shots
- • Four leg-angle settings (25, 46, 66 & 88°)
Maximum Height
70.3" (178.5 cm)
Maximum Height w/o Column Extended
54.1" (137.5 cm)
Minimum Height
2.8" (7.0 cm)
Folded Length
24" (61.0 cm)
Load Capacity
15.4 lbs (7 kg)
Leg Sections
3
Leg Lock Type
Flip levers
Independent Leg Spread
Yes
Center Column Sections
1 (with built-in low angle adapter)
Center Column Type
Rapid sliding
Center Brace
No
Spiked Feet
Optional (190SPK2N)
Head Type
None
Head Mount Thread Size
3/8"
Weight
5 lbs (2.268 kg)
