ATOMOS Ninja Flame - Display Registratore Universale 4K - 2 Anni Di Garanzia

ATOMNJAFL1

Nuovo

Disponibile in 3/5 giorni

1 358,90 €(iva incl.)

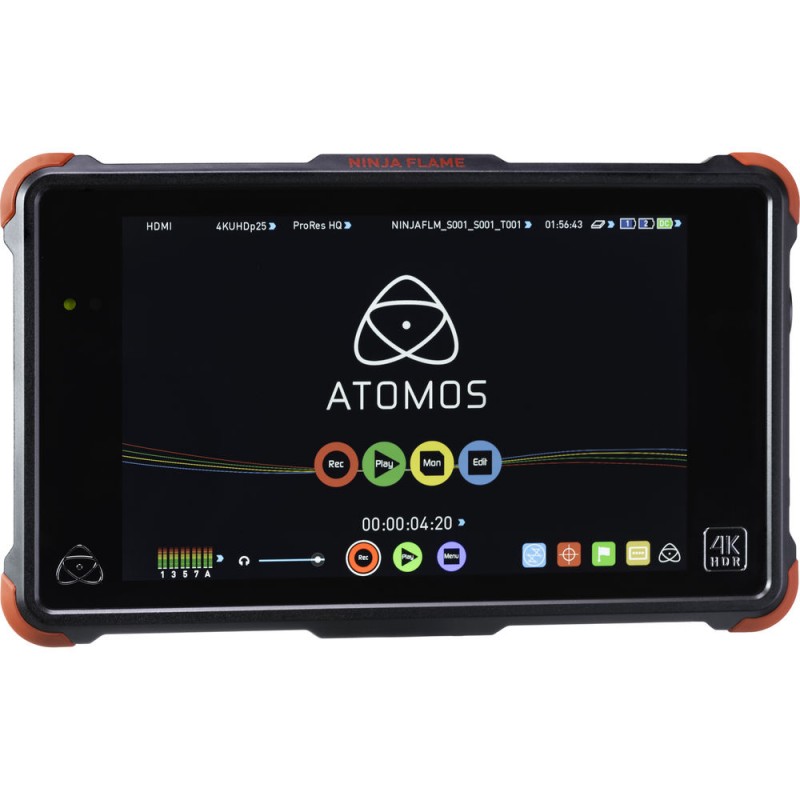

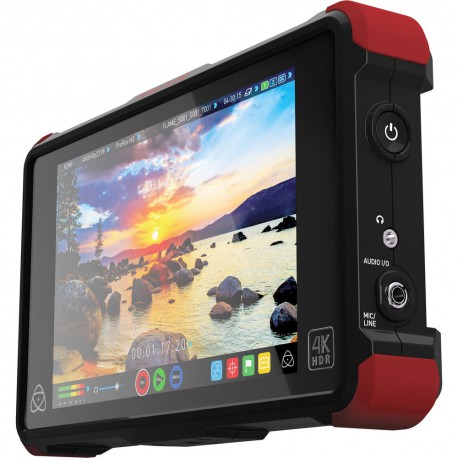

The Atomos Ninja Flame is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes an HDMI input to support clean output signals at resolutions up to UHD 4K, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs.

The 10-bit panel and AtomHDR display technology support a brightness range of over 10 stops, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.

In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.

Built to withstand the rigors of production, the Ninja Flame features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Ninja, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor features a 3.5mm microphone input, with on-screen audio level display. Additionally, the monitor features a variety of onscreen exposure analysis, framing, and focus assist tools. Included with the monitor are two NP-F750 batteries, along with a fast charger, D-tap power cable, AC power adapter, control cable, USB 3.0 docking station, and five Master Caddy SSD/HDD cases. All items come packaged in a custom HPRC hard case.

Monitor

        1920 x 1200 resolution
        10-bit FRC monitoring processing
        1500 cd/m² brightness
        4K HDMI input/output
        AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
        Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
        High Bright mode for Rec. 709 viewing
        4K UHD downscale for HD monitoring
        Supports custom 3D LUTs (.cube format)
        Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3

Recording

        UHD 4K recording at 24/25/30 fps
        1080p recording up to 120 fps
        10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
        Pre-roll record (HD 8 seconds, 4K 2 seconds)
        Custom time-lapse mode
        10 metadata fields

Additional Features

        3.5mm microphone input
        Audio level meters and mic level adjustment

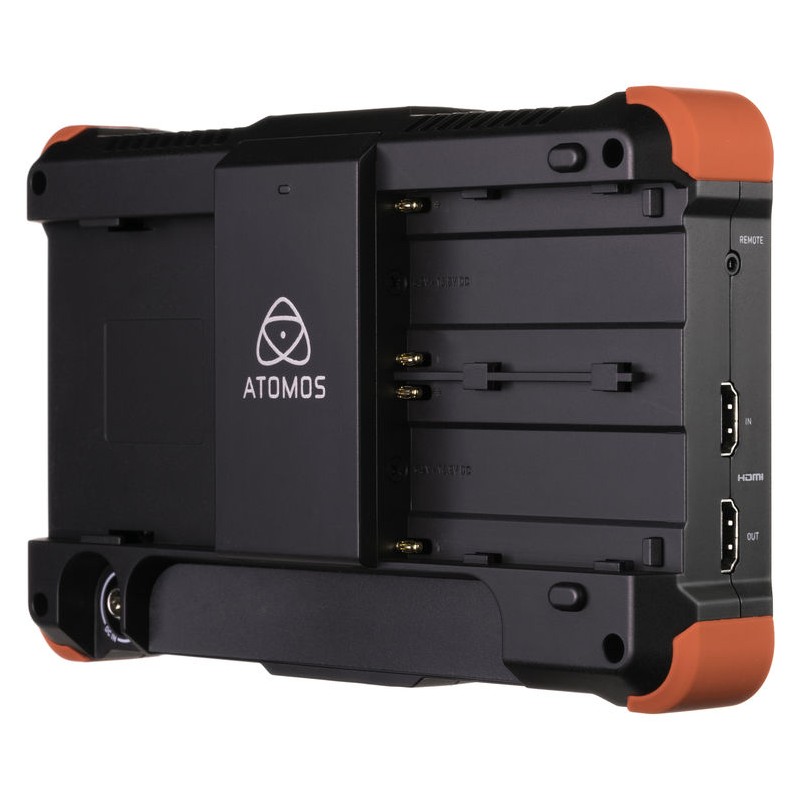

        Dual Sony L-Series battery slots support hot-swappable for continuous power
        Built-in armor with silicone-covered corners
        Snap-on sun hood
        Two NP-F750 batteries and fast charger included
        Custom HPRC hard case


Display


Type

7.1" (18 cm) IPS capacitive touchscreen

Resolution

1920 x 1200
325 ppi

Bit Depth

10-bit (8-bit plus FRC)

Video Aspect Ratio

Native: 16:9

Brightness

1500 cd/m²

LUT Support

3D LUT (.cube file format)

Interface


Inputs

1 x HDMI (1.4b)
1 x 2.5 mm LANC
1 x 3.5 mm stereo mini-jack (Mic / Line)

Outputs

1 x HDMI (1.4b) loop output
1 x 3.5 mm headphone jack

Supported Video Format


Supported Signal

Input: 10- / 8-bit 4:2:2 (dependent on video source)
Output: 10- / 8-bit 4:2:2 (dependent on video source)

Input/Output Resolutions

2160p 24/25/30
1080p 24/25/30/50/60/120
1080i 50/60
720p 50/60

Encoding Formats

UHD 4K (3840 x 2160):
Apple ProRes HQ, 422, LT
DNxHR HQX, HQ, SQ, LB

1920 x 1080
Apple ProRes HQ, 422, LT
DNxHD 220x, 220, 145, 36

Pulldown Conversion

24/25/30psf to 24/25/30p (2:2 pulldown) 60i to 24p (3:2 pulldown)

Audio Input / Output


HDMI

2 or 8-channel, 24-bit (camera dependent)

Audio Input

3.5 mm (Mic / Line in), 2-channel, 48 kHz, 24-bit

Audio Output

3.5 mm headphone jack

Remote Operation


HDMI

Auto HDMI trigger
Supported Protocols: Canon, Sony, Atomos Open Standard

LANC

Supports slave configuration

Recording Media


Supported Media

4K
2.5" SSD

HD High Frame Rate (50/60/120p):
2.5" SSD
2.5" HDD (7,200 rpm and up) for 1080p 50/60

HD (30p and less):
2.5" SSD
2.5" HDD (5,400 rpm and up)

Note: Only use media that has been approved by Atomos

Master Caddy Dock

Interface: 2.5" SATA to USB 2.0/3.0

Supported Applications

Final Cut Pro X/7+
Avid Media Composer 5.0+
Adobe Premiere 5.5+
Grass Valley EDIUS 6.0+
Sony Vegas Pro 10+
Lightworks
Autodesk Smoke 2015

XML Support

FCPX XML native, FCP7 supported with conversion (Adobe compatible)

General


Power Requirements

6.2 to 16.8 VDC (battery or DC power input)

Power Consumption

10 to 24 W

Supported Battery Types

2 x Sony L-series

Battery Life

5200 mAh: up to 1.5 hours (monitor and record 4K)
7800 mAh: up to 2.2 hours (monitor and record 4K)

Construction

ABS polycarbonate

Dimensions

8.4 x 5 x 1.8" (21.4 x 12.7 x 4.5 cm)

Weight

Without Batteries & Media: 1.4 lb (0.62 kg)
With Batteries & Media: 2.3 lb (1.06 kg)

Packaging Info


Package Weight

12.35 lb

Box Dimensions (LxWxH)

16.1 x 13.7 x 7.0"

  • Atomos Ninja Flame 7" 4K
  • Paraluce
  • 2 x NP-F750 Batterie
  • Caricabatterie
  • Cavo di controllo(2.5mm Female to 2x 2.5mm Male)
  • USB 3.0 Docking Station
  • Coiled D-Tap to DC Power Cable
  • 5 x Master Caddy
  • adattatore caricabatteria
  • HPRC Custodia Rigida (Rossa)
